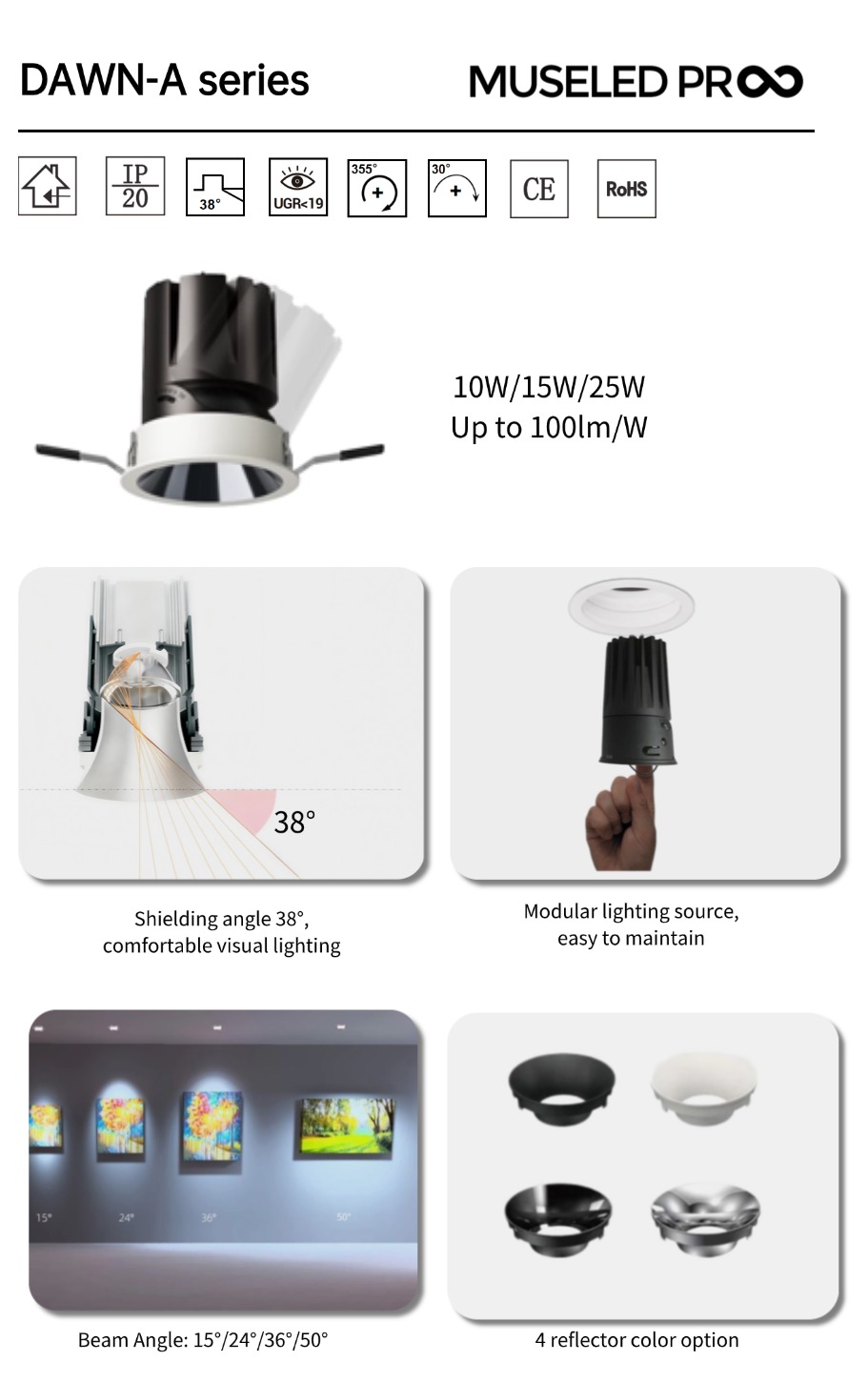

DAWN-A series

Deep cup anti-glare down light

  • Comfortable visual via shilding angle>38°.

  • Even lighting distribution via self-designed lens.

  • High efficinecy up to 95lm/W,CRI90.

  • R9~R15 > 90, faithfully reproduces the colors of objects.

  • Luminaire color consistant via SDCM<3.

Item NO.Size (mm)CutoutInput VoltagePowerCRIBeam AngleEfficiency
lm/W @3000K		Lumen (LM)
@3000K
DAWN55-8-9B1Φ62*H85φ55mm220-240VAC8W>9015°72 lm/W576lm
DAWN55-8-9B2Φ62*H85φ55mm220-240VAC8W>9024°92 lm/W736lm
DAWN55-8-9B3Φ62*H85φ55mm220-240VAC8W>9036°95 lm/W760lm
DAWN55-8-9B4Φ62*H85φ55mm220-240VAC8W>9050°90 lm/W720lm
DAWN55-10-9B1Φ62*H85φ55mm220-240VAC10W>9015°72 lm/W720lm
DAWN55-10-9B2Φ62*H85φ55mm220-240VAC10W>9024°92 lm/W920lm
DAWN55-10-9B3Φ62*H85φ55mm220-240VAC10W>9036°95 lm/W950lm
DAWN55-10-9B4Φ62*H85φ55mm220-240VAC10W>9050°90 lm/W900lm
DAWN75-12-9B1Φ82*H90φ75mm220-240VAC12W>9015°65 lm/W780lm
DAWN75-12-9B2Φ82*H90φ75mm220-240VAC12W>9024°88 lm/W1056lm
DAWN75-12-9B3Φ82*H90φ75mm220-240VAC12W>9036°90 lm/W1080lm
DAWN75-12-9B4Φ82*H90φ75mm220-240VAC12W>9050°85 lm/W1020lm
DAWN75-15-9B1Φ82*H90φ75mm220-240VAC15W>9015°65 lm/W975lm
DAWN75-15-9B2Φ82*H90φ75mm220-240VAC15W>9024°88 lm/W1320lm
DAWN75-15-9B3Φ82*H90φ75mm220-240VAC15W>9036°90 lm/W1350lm
DAWN75-15-9B4Φ82*H90φ75mm220-240VAC15W>9050°85 lm/W1275lm
DAWN75-20-9B1Φ82*H120φ75mm220-240VAC20W>9015°65 lm/W1300lm
DAWN75-20-9B2Φ82*H120φ75mm220-240VAC20W>9024°88 lm/W1760lm
DAWN75-20-9B3Φ82*H120φ75mm220-240VAC20W>9036°90 lm/W1800lm
DAWN75-20-9B4Φ82*H120φ75mm220-240VAC20W>9050°85 lm/W1700lm
DAWN95-20-9B1Φ108*H122φ95mm220-240VAC20W>9015°88 lm/W1760lm
DAWN95-20-9B2Φ108*H122φ95mm220-240VAC20W>9024°90 lm/W1800lm
DAWN95-20-9B3Φ108*H122φ95mm220-240VAC20W>9036°90 lm/W1800lm
DAWN95-20-9B4Φ108*H122φ95mm220-240VAC20W>9050°80 lm/W1600lm
DAWN95-25-9B1Φ108*H122φ95mm220-240VAC25W>9015°88 lm/W2200lm
DAWN95-25-9B2Φ108*H122φ95mm220-240VAC25W>9024°90 lm/W2250lm
DAWN95-25-9B3Φ108*H122φ95mm220-240VAC25W>9036°90 lm/W2250lm
DAWN95-25-9B4Φ108*H122φ95mm220-240VAC25W>9050°80 lm/W2000lm
